Brand	Lian Li
MODEL No.	EG0850G
Product Name	EDGE GOLD 850
POWER SUPPLY DESIGN	Fully modular
MATERIAL	Steel
FORM FACTOR	ATX 3.1
CERTIFICATION	80 PLUS GOLD / Cybernetics GOLD / PPLP GOLD
MAX. DC OUTPUT	850W
COMBINED +3.3V & +5V	120W
COMBINED +12V	849W
INPUT VOLTAGE	100-240Vac
INPUT FREQUENCY RANGE	10-5A 50-60Hz
PFC	Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
EFFICIENCY	90.71%MAX
PROTECTIVE CIRCUIT	OCP/OVP/OTP/OPP/SCP/UVP
CONNECTORS	1x 24/20-Pin motherboard connector (620mm) x1pcs // 1x 8 pin CPU/ATX 12V connector (750mm) x1pcs // 1x 4+4 Pin CPU connector (750mm) x1pcs // 1x 6+2 Pin GPU connector (650mm+100mm) x1pcs // 1x SATA connector (300mm-15mm-15mm-15mm) x1pcs // 1x SATA-Y connector (375mm-150mm-150mm) x 1pcs // 1x SATA connector (400mm-150mm-150mm-150mm) x1pcs // 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs // 1x 12V – 2X6 450W connector (650mm) x1pcs // 2x 6+2 Pin GPU connector (650mm) x2pcs
FAN TYPE	120mm FDB Fan
FAN SPEED	2000RPM
FAN NOISE LEVEL	30.9dBA
DIMENSIONS (DxWxH)	182x86x150mm

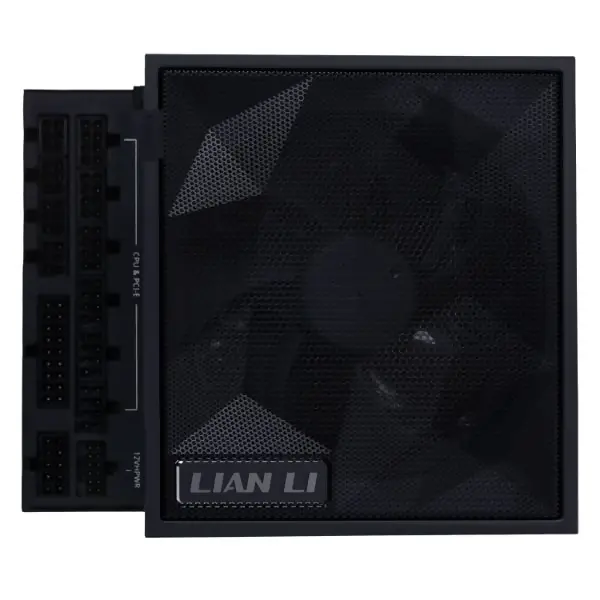

Lian Li Edge EG0850G 850W 80+ Gold ATX 3.1 Black Fully Modular PSU – PCIe 5.1 / ATX 12V 3.1 Ready
