*Model*	*B850M GAMING PLUS WIFI6E*
*CPU*	*Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors // Socket AM5*
*Chipset*	*AMD B850*
*Memory*	4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s // Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s // Supports AMD POR Speed and JEDEC Speed // Supports Memory Overclocking and AMD EXPOTM // Supports Dual-Channel mode // Supports Non-ECC, Un-buffered memory // Supports CUDIMM, Clock Driver bypass mode only
*Expansion Slots*	*1x PCI-E x16 slot // 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)*
*Graphics*	1x HDMI™: Support HDMI™ 2.1, maximum resolution of 4K 60Hz* // 1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Storage*	2x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices -- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices -- 4x SATA 6G // M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) -- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) // M2_2 slot: Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) -- Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
*RAID*	*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices // Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*
*USB*	*4x USB 2.0 (Front) // 4x USB 5Gbps Type A (Rear) // 2x USB 5Gbps Type A (Front) // 3x USB 10Gbps Type A (Rear) // 1x USB 10Gbps Type C (Rear) // 1x USB 10Gbps Type C (Front)*
*Back Panel I/O Ports*	Clear CMOS Button // DisplayPort 1.4 // 2.5G LAN // USB 10Gbps (Type-A) // Wi-Fi / Bluetooth // HD Audio Connectors // Flash BIOS Button // HDMI™ // USB 10Gbps (Type-A) // USB 10Gbps (Type-C) // USB 5Gbps (Type-A)
*Audio*	*Realtek® ALC897 Codec - 7.1-Channel High Definition Audio*
*Internal I/O Connectors*	1x Power Connector(ATX_PWR) // 2x Power Connector(CPU_PWR) // 1x CPU Fan // 1x Combo Fan (Pump_Sys Fan) // 3x System Fan // 1x EZ Conn-header (JAF_1) / 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 1x Tuning Controller connector(JDASH) // 3x Addressable V2 RGB LED connector (JARGB_V2) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 4x USB 2.0 ports // 2x USB 5Gbps Type A ports // 1x USB 10Gbps Type C ports
*LED FEATURE*	*4x EZ Debug LED // 1x EZ Memory Detection LED*
*Ethernet*	*Realtek® 8125D 2.5G LAN*
*WIRELESS LAN & BLUETOOTH*	Wi-Fi 6E Solution: The Wireless module is pre-installed in the M.2 (Key-E) slot -- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps -- Supports 802.11 a/ b/ g/ n/ ac/ ax // Supports Bluetooth® 5.3, FIPS, FISMA
*Operating System*	*Support for Windows® 11 64-bit*
*Form Factor*	*mATX - 243.84x243.84mm*

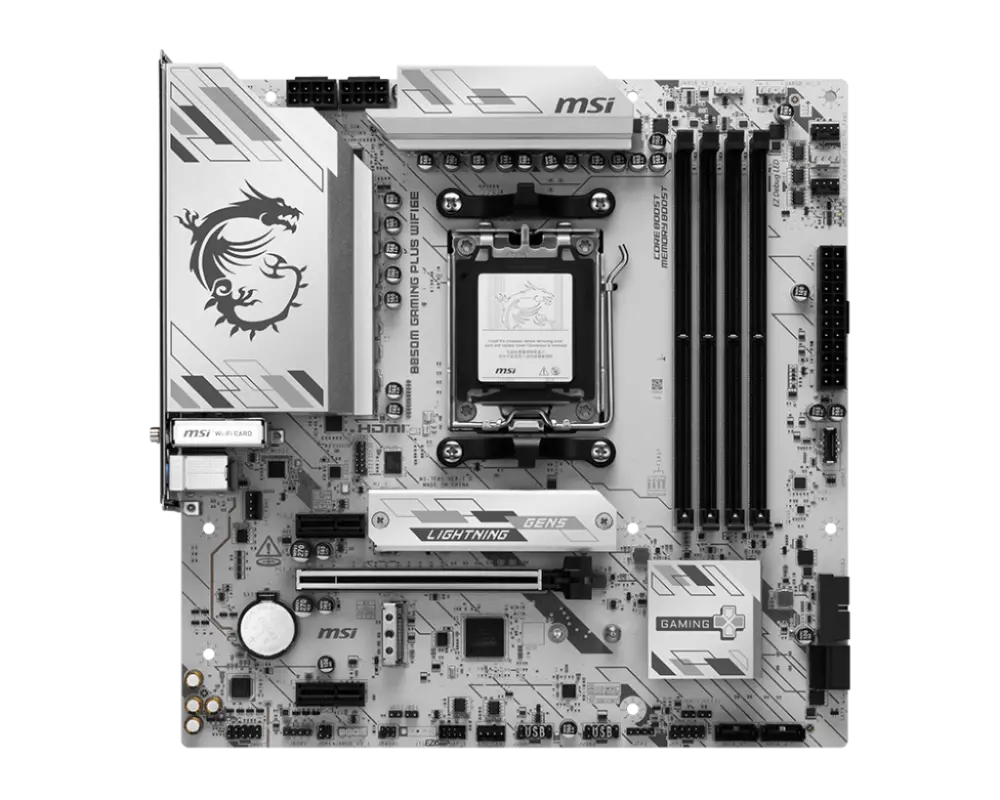

MSI B850M GAMING PLUS WIFI6E AM5 M-ATX Motherboard
