*Series*	*MAG A750GL PCIE5*
*ATX Standard*	*ATX 3.1*
*Efficiency*	*80 PLUS Gold (up to 90%)*
*AC Input Range*	*100-240Vac*
*Total Output*	*750W*
*Power Excursion*	**1500W (up to 200% of the PSU's rated power for 100μs)***
*Input Frequency Range*	*47-63Hz*
*Fan*	*120mm*
*Fan Bearings*	*Fluid Dynamic Bearing*
*PFC Type*	*Active PFC*
*Protection Features*	*OCP / OVP / OPP / OTP / SCP / UVP*
*Modular*	*Full Modular*

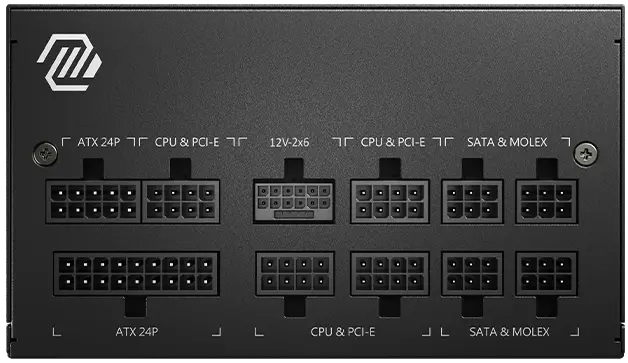

*Cable Connectors*	*ATX (24 pin): 1 // EPS (4+4 pin): 2 / PCI-E 5.0 (16 pin): 1 (450W) // PCI-E (6+2 pin): 3 // SATA (15 pin): 8 // PERIPHERAL (4 pin): 4 // FDD (4 pin): 1*
*Features*	ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable // Supports NVIDIA® GeForce RTX™ 40 Series graphics cards // Full modular design,Flat cables // 80 Plus Gold certified for high efficiency // Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP // 120mm Fluid Dynamic Bearing Fan // LLC Full Bridge Topology with DC-DC module design
*Dimensions (DxWxH)*	*140x150x86mm*

MSI MAG A750GL PCIE5 – ATX 3.1, 750W 80+ Gold, Full Modular, 90% Efficiency, LLC Full Bridge Topology

Product Description
