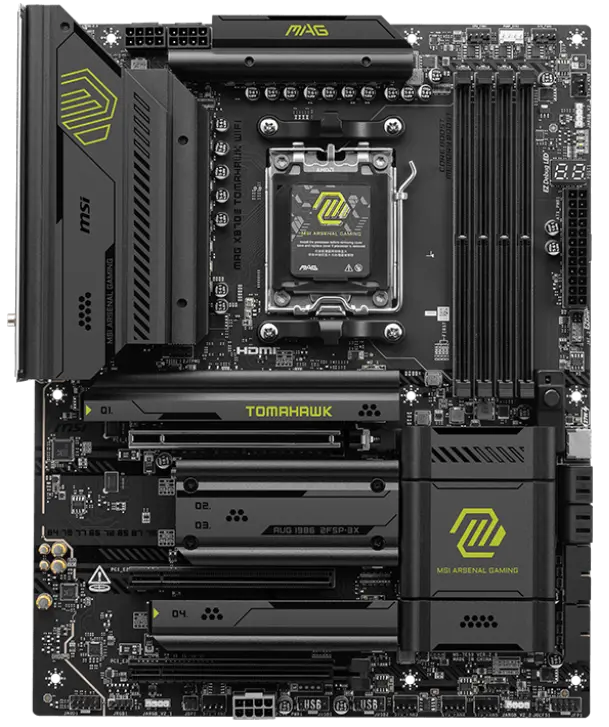

Model:	MAG X870E TOMAHAWK WIFI
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors // Socket AM5
Chipset	AMD X870E
Operating System	Support for Windows® 11 64-bit
Form Factor	ATX // 243.84mmx304.8mm
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB // Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s // Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s // Supports AMD POR Speed and JEDEC Speed // Supports Memory Overclocking and AMD EXPO // Supports Dual-Channel mode // Supports Non-ECC, Un-buffered memory // Supports CUDIMM, Clock Driver bypass mode only // CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information
Expansion Slots	3x PCI-E x16 slot // PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) // PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) // PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) // PCI_E1 slot: • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Graphics	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz // 2x Type-C DisplayPort // USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz // Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage	4x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices // 4x SATA 6G // M.2_1 slot (From CPU): • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) // M.2_2 slot (From CPU): • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) // The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. // USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4. // RAID: •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices // RAID 5 configuration is only supported by Ryzen™ 9000 series processors. // RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Rear) // 4x USB 2.0 (Front) // 3x USB 5Gbps Type A (Rear) // 4x USB 5Gbps Type A (Front) // 2x USB 10Gbps Type A (Rear) // 1x USB 10Gbps Type C (Rear) // 1x USB 20Gbps Type C (Front) // 2x USB 40Gbps Type C (Rear)
Back Panel I/O Ports	Clear CMOS Button // USB 10Gbps Type-A // USB 5Gbps Type-A // USB 2.0 // 5G LAN // Wi-Fi / Bluetooth // Audio connectors // Flash BIOS Button // HDMI™ // USB 40Gbps Type-C // USB 10Gbps Type-C // USB 10Gbps Type-A
Audio	Realtek® ALC4080 Codec - 7.1-Channel USB High Performance Audio // Supports up to 32-bit/384kHz playback on front panel // Supports S/PDIF output
Internal I/O Connectors	1x Power Connector(ATX_PWR) // 2x Power Connector(CPU_PWR) // 1x Power Connector(PCIE_PWR 8pin) // 1x CPU Fan // 1x Combo Fan (Pump_Sys Fan) // 6x System Fan // 1x EZ Conn-header (JAF_2) // 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 3x Addressable V2 RGB LED connector (JARGB_V2) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 4x USB 2.0 ports // 4x USB 5Gbps Type A ports // 1x USB 20Gbps Type C ports
LED FEATURE	4x EZ Debug LED // 1x EZ Digit Debug LED
Ethernet	1x Realtek® 8126 5G LAN
WIRELESS LAN & BLUETOOTH	Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax/ be - 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. // Supports Bluetooth® 5.4 - The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. // MLO, 4KQAM // 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. // The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BOX CONTENT	2x SATA Cable //EZ Wi-Fi Antenna // EZ M.2 Clip II Remover // Quick Installation Guide // M.2 Plate Screw // USB Drive // 1 To 3 EZ Conn-Cable (V2) // EZ Front Panal Cable // Cable Sticker // Shout-Out Flyer
