*Model:*	*MSI PRO B650M-P*
*CPU*	*Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors / Socket AM5*
*Chipset*	*AMD® B650 Chipset*
*Memory*	*4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)MHz*
*Memory Overclocking*	*1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz*
*Memory Features*	*Supports Dual-Channel mode / Supports non-ECC, un-buffered memory / Supports AMD EXPO*
*Expansion Slots*	*1x PCI-E x16 slot / 2x PCI-E x1 slot / PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)*
*Graphics*	*1x HDMI™: Support HDMITM 2.1, maximum resolution of 4K 60Hz / 1x DisplayPort: Supports DP 1.4, maximum resolution of 4K 60Hz / 1x VGA: Support VGA, maximum resolution of 1920x1200 60Hz*
*Storage*	*2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices / M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices // 4x SATA 6G*
*RAID*	*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices / Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*
*USB*	*4x USB 2.0 (Rear) / 4x USB 2.0 (Front) / 2x USB 5Gbps Type A (Rear) / 2x USB 5Gbps Type A (Front) / 2x USB 10Gbps Type A (Rear) / 1x USB 10Gbps Type C (Front)*
*Audio*	*Realtek® ALC897 Codec / 7.1-Channel HD Audio.*
*Back Panel I/O Ports*	*DisplayPort // VGA // Keyboard / Mouse // USB 2.0 // 2.5G LAN // Audio connectors // Flash BIOS Button // HDMI™ // USB 2.0 // USB 3.2 Gen 1 5Gbps (Type-A) // USB 3.2 Gen 2 10Gbps (Type-A)*
*Internal I/O Connectors*	1x Power Connector(ATX_PWR) / 1x Power Connector(CPU_PWR) / 1x CPU Fan / 1x Pump Fan / 3x System Fan / 2x Front Panel (JFP) / 1x Chassis Intrusion (JCI) / 1x Front Audio (JAUD) / 1x Com Port (JCOM) / 2x Addressable V2 RGB LED connector (JARGB_V2) / 2x RGB LED connector(JRGB) / 1x TPM pin header(Support TPM 2.0) / 4x USB 2.0 ports / 2x USB 5Gbps Type A ports / 1x USB 10Gbps Type C ports
*LED FEATURE*	*4x EZ Debug LED*
*Ethernet*	*Realtek® 8125BG 2.5G LAN*
*Form Factor*	*mATX / 243.84mmx243.84mm*
*Operating System*	*Support for Windows® 10 64-bit*

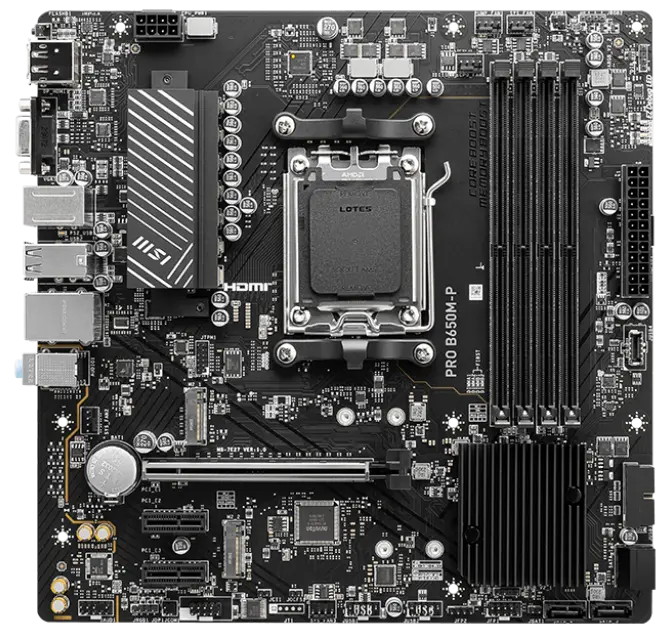

MSI PRO B650M-P AM5 M-ATX Motherboard

Product Description
