Model:	PRO B760M-P
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Chipset	Intel® B760
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	mATX 243.84mmx243.84mm
Memory	4x DDR5, Maximum Memory Capacity 256GB // Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz // Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz // Supports Intel® XMP 3.0 OC // Supports Dual-Controller Dual-Channel mode // Supports non-ECC, un-buffered memory
Expansion Slots	1x PCI-E x16 slot // 2x PCI-E x1 slot // PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) // PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) // PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Graphics	1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* // 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* // 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Storage	2x M.2 - M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices // 4x SATA 6G // SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. // Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) // 4x USB 2.0 (Front) // 1x USB 5Gbps Type A (Rear) // 2x USB 5Gbps Type A (Front) // 1x USB 10Gbps Type C (Rear)
Back Panel I/O Ports	DisplayPort // HDMI™ // VGA // Keyboard / Mouse // USB 3.2 Gen 1 5Gbps (Type-A) // LAN port // Audio Connectors // USB 2.0 // USB 3.2 Gen 2 10Gbps (Type-C)
Audio	Realtek® ALC897 Codec // 7.1-Channel High Definition Audio
Internal I/O Connectors	1x Power Connector(ATX_PWR) // 1x Power Connector(CPU_PWR) // 1x CPU Fan // 2x System Fan // 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 1x Com Port (JCOM) // 1x Printer Port (JLPT) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 4x USB 2.0 ports // 2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED
Ethernet	Realtek® RTL8111H Gigabit LAN
BOX CONTENT	SATA Cable // I/O Shield // 2x M.2 Screw / Standoff Set // Quick Installation Guide

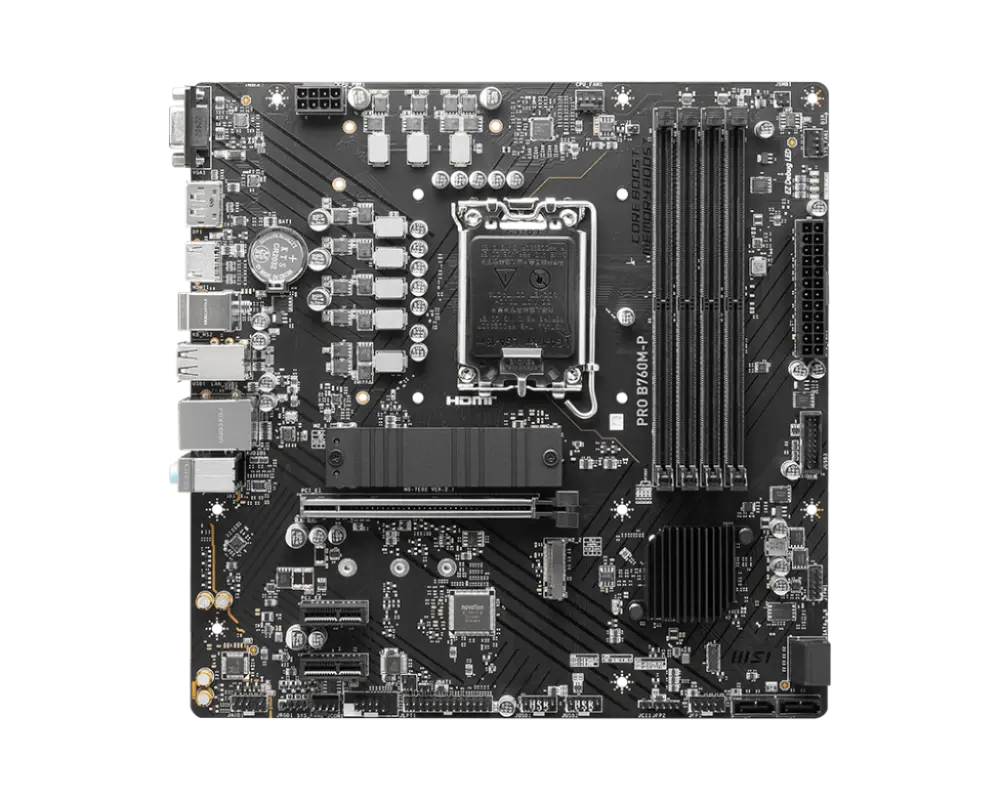

MSI PRO B760M-P LGA1700 M-ATX Motherboard
