Brand	MSI
Model	MSI PRO B850M-G
Product Number	911-7E82-001
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors // Socket AM5
Chipset	AMD B850
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Frequency	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s // Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s
Memory Features	Supports AMD POR Speed and JEDEC Speed // Supports Memory Overclocking and AMD EXPOTM // Supports Dual-Channel mode // Supports Non-ECC, Un-buffered memory // Supports CUDIMM, Clock Driver bypass mode only
Graphics	1x HDMI™: Support HDMITM 2.1, maximum resolution of 4K 60Hz // 1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Expansion Slots	2x PCI-E x16 slots
Expansion Slots (CPU)	1x PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Expansion Slots (Chipset)	1x PCI_E2 Gen PCIe 4.0 supports up to x4
Storage	2x M.2 // 4x SATA 6G
Storage (CPU)	M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) // M2_2 slot: Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Support	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices // Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB (Rear)	2x USB 2.0 // 3x USB 5Gbps Type A // 1x USB 5Gbps Type C
USB (Front)	4x USB 2.0 // 2x USB 5Gbps Type A // 1x USB 10Gbps Type C
Audio	Realtek® ALC897 // 7.1-Channel High Definition Audio
Ethernet	Realtek® 8126VB 5G LAN
Internal I/O Connectors	1x Power Connector(ATX_PWR) // 1x Power Connector(CPU_PWR) // 1x CPU Fan // 1x Combo Fan (Pump_Sys Fan) // 2x System Fan // 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 1x Com Port (JCOM) // 3x Addressable V2 RGB LED connector (JARGB_V2) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 4x USB 2.0 ports // 2x USB 5Gbps Type A ports // 1x USB 10Gbps Type C ports
Back Panel I/O Ports	Clear CMOS Button // DisplayPort // 2x USB 5Gbps Type-A // USB 2.0 // 5G LAN // Audio connectors // Flash BIOS Button // HDMI™ // USB 5Gbps Type-C
Features	4x EZ Debug LED // 1x EZ Memory Detection LED
Operating System	Support for Windows 11 64-bit
Form Factor	mATX 226mmx243.84mm

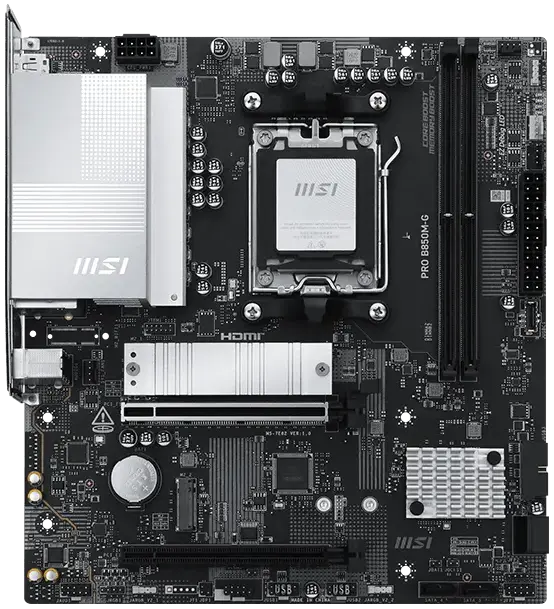

MSI PRO B850M-G AM5 M-ATX Motherboard
