Next-Gen LGA 1851 Z890 Mainboard with Project Zero Back-Connect Design, DDR5 & Wi-Fi 7:

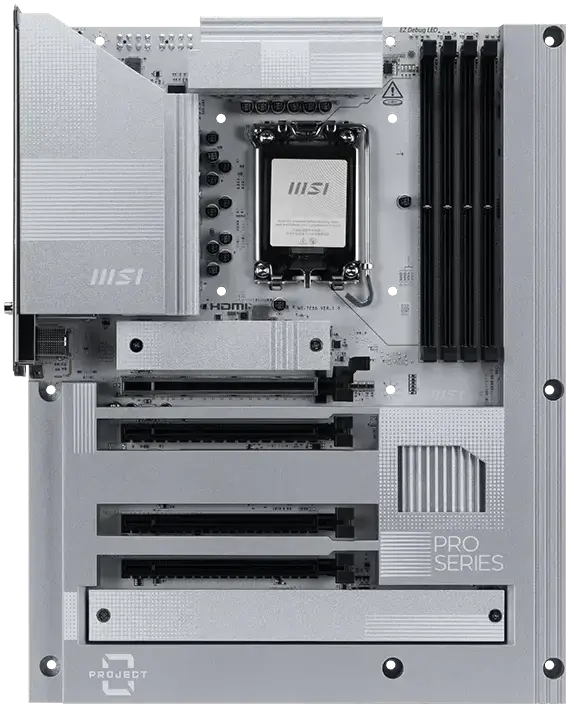

The MSI PRO Z890-S WIFI PZ (911-7E58-004) is an advanced ATX motherboard built for Intel® Core™ Ultra Series 2 processors (LGA 1851). Featuring MSI’s innovative Project Zero (PZ) back-connect architecture, power, fan, and front panel headers are relocated to the rear of the PCB for an ultra-clean interior build with zero visible cabling. Built on the Intel Z890 chipset, it offers a robust Duet Rail Power System VRM, support for high-speed DDR5 memory, a primary PCIe 5.0 x16 expansion slot, and Lightning Gen 5 M.2 NVMe storage, making it a future-ready foundation for AI computing, content creation, and high-performance gaming.

Key features:

Project Zero (PZ) Back-Connect Design: Cable headers for power, SATA, fans, and front panel connections are located on the back of the motherboard, providing cleaner airflow pathways and simplified cable management inside PZ-compatible chassis.
LGA 1851 Socket & Z890 Chipset: Optimized for Intel Core Ultra desktop CPUs, featuring dedicated AI processing lanes and expanded PCIe Gen 5 connectivity.
PCIe 5.0 & Gen 5 M.2 SSD Support: Delivers up to 128GB/s transfer speeds for next-generation graphics cards and ultra-fast NVMe storage drives.
Integrated Wi-Fi 7 & 2.5G LAN: Next-generation wireless connectivity supporting 320MHz channels and Multi-Link Operation (MLO) alongside low-latency 2.5Gbps wired Ethernet.
EZ DIY Friendly Features: Includes toolless EZ M.2 Shield Frozr II, EZ M.2 Clip, and EZ PCIe Release for quick, hassle-free hardware upgrades.

specs:

Brand	MSI
Model	MSI PRO Z890-S WIFI PZ
Product Number	911-7E58-004
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset	INTEL Z890
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Frequency	Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s // Max. overclocking: 1DPC 1R Max speed up to 8800+ MT/s \| 1DPC 2R Max speed up to 7200+ MT/s \| 2DPC 1R Max speed up to 6400+ MT/s \| 2DPC 2R Max speed up to 5600+ MT/s
Memory Features	Supports Intel® POR Speed and JEDEC Speed // Supports Memory Overclocking and Intel® XMP 3.0 // Supports Dual-Controller Dual-Channel mode // Supports Non-ECC, Un-buffered memory // Supports CUDIMM
Graphics	1x HDMI™: Support HDMI™ 2.1, maximum resolution of 4K 60Hz // 1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz // 1x Type-C DisplayPort: Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Expansion Slots	4x PCI-E x16 slot
Expansion Slots (CPU)	PCI_E1 Gen PCIe 5.0 supports up to x16 // PCI_E4 Gen PCIe 4.0 supports up to x4
Expansion Slots (Chipset)	PCI_E2 Gen PCIe 3.0 supports up to x1 // PCI_E3 Gen PCIe 4.0 supports up to x4
Storage	3x M.2
Storage M.2 (CPU)	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
Storage M.2 (Chipset)	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices // M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Storage (SATA)	4x SATA 6G
RAID Support	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices // Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Thunderbolt	1x Thunderbolt4 ports (Rear): Supports up to 40Gbps transfer rate with Thunderbolt devices \| Supports up to 20Gbps transfer rate with USB4 devices \| Supports up to 10Gbps transfer rate with USB 3.2 devices \| Supports up to 5V/3A,15W power charging \| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices \| Supports up to 8K display
USB	4x USB 2.0 (Front) // 6x USB 5Gbps Type A (Rear) // 2x USB 5Gbps Type A (Front) // 1x USB 20Gbps Type C (Rear) // 1x USB 20Gbps Type C (Front)
Audio	Realtek® ALC897 Codec // 7.1-Channel High Definition Audio
Ethernet	Realtek® 8125D 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot \| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps \| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be // Supports Bluetooth® 5.4, MLO, 4KQAM
Internal I/O Connectors	1x Thunderbolt5 card connector(JTBT5, support RTD3) // 1x Power Connector(ATX_PWR) // 2x Power Connector(CPU_PWR) // 1x Power Connector(PCIE_PWR 8pin) // 1x CPU Fan // 1x Combo Fan (Pump_Sys Fan) // 4x System Fan // 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 1x Tuning Controller connector(JDASH) // 3x Addressable V2 RGB LED connector (JARGB_V2) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 4x USB 2.0 ports // 2x USB 5Gbps Type A ports // 1x USB 20Gbps Type C ports
Back Panel I/O Ports	DisplayPort // USB 5Gbps Type-A // 2.5G LAN // Wi-Fi / Bluetooth // Audio Connectors // HDMI™ // Thunderbolt™ 4 40Gbps (Type-C) // USB 20Gbps Type-C // USB 5Gbps Type-A
LED FEATURE	4x EZ Debug LED
Features	Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket // Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC) // Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB // Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience // EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna // Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2 // Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant // 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking // Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
BOX CONTENT	European Union Regulatory Notice // Quick Installation Guide // Ez M.2 Clip II Remover // 3x EZ M.2 Clip II // EZ Wi-Fi Antenna // 2x SATA Cables // 1 to 2 EZ Conn-Cable (V1)
Operating System	Support for Windows® 11 64-bit
Form Factor	Back-connect ATX \| 243.84 x 304.8mm
Resources	https://www.msi.com/Motherboard/PRO-Z890-S-WIFI-PZ/Specification

MSI PRO Z890-S WIFI PZ LGA 1851 ATX Back-Connect Motherboard
