*Model*	*MSI X870E GAMING PLUS WIFI*
*Product Number*	*911-7e70-001*
*CPU*	*Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors // Socket AM5*
*Chipset*	*AMD X870E*
*Memory*	*4x DDR5 UDIMM, Maximum Memory Capacity 256GB*
*Memory Frequency*	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s - Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s
*Memory Features*	Supports AMD POR Speed and JEDEC Speed // Supports Memory Overclocking and AMD EXPOTM // Supports Dual-Channel mode // Supports Non-ECC, Un-buffered memory // Supports CUDIMM, Clock Driver bypass mode only
*Graphics*	*1x HDMI™: Support HDMITM 2.1, maximum resolution of 4K 60Hz // 1x Type-C DisplayPort: USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
*Expansion Slots*	3x PCI-E x16 slot // 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) - PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
*Expansion Slots Compatibility*	PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
*Storage*	3x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices // 4x SATA 6G
*Storage Compatibility*	*M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)*
*RAID Support*	Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices // RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
*USB*	4x USB 2.0 (Rear) // 6x USB 2.0 (Front) // 2x USB 5Gbps Type A (Rear) // 4x USB 5Gbps Type A (Front) // 2x USB 10Gbps Type A (Rear) // 1x USB 10Gbps Type C (Front) // 1x USB 20Gbps Type C (Rear) // 1x USB 40Gbps Type C (Rear)
*Audio*	*Realtek® ALC897 // 7.1-Channel High Definition Audio // audio boost // High Definition Audio Processor // High Quality Capacitors*
*Ethernet*	*Realtek® 8126VB 5G LAN*
*Wireless & Bluetooth*	Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax/ be // Supports Bluetooth® 5.4, MLO, 4KQAM
*Internal I/O Connectors*	1x Power Connector(ATX_PWR) // 2x Power Connector(CPU_PWR) // 1x Power Connector(PCIE_PWR 8pin) // 1x CPU Fan // 1x Combo Fan (Pump_Sys Fan) // 6x System Fan // 1x EZ Conn-header (JAF_1) // 2x Front Panel (JFP) // 1x Chassis Intrusion (JCI) // 1x Front Audio (JAUD) // 1x Tuning Controller connector(JDASH) // 3x Addressable V2 RGB LED connector (JARGB_V2) // 1x RGB LED connector(JRGB) // 1x TPM pin header(Support TPM 2.0) // 6x USB 2.0 ports // 4x USB 5Gbps Type A ports // 1x USB 10Gbps Type C ports
*Back Panel I/O Ports*	Clear CMOS Button // USB 5Gbps Type-A // USB 10Gbps Type-A // USB 2.0 // 5G LAN // Wi-Fi / Bluetooth // Audio connectors // Flash BIOS Button // HDMI™ // USB 40Gbps Type-C // USB 2.0 // USB 20Gbps Type-C // USB 5Gbps Type-A
*Features*	EZ DIY // One Finger for EZ GPU Installation // EZ M.2 Installation // 14+2+1 DRPS POWER DESIGN // OPTIMIZED PCB SOLUTION // FROZR DESIGN // Heavy Plated VRM Heatsink // 7W/mK Thermal Pad & Additional Choke Pad // Enlarged Chipset Heatsink // M.2 Shield Frozr // TRILINK // MSI AI LAN MANAGER
*LED FEATURE*	*4x EZ Debug LED // 1x EZ Memory Detection LED*
*Accessories*	*Quick Installation Guide // European Union Regulatory Notice // 2x SATA Cables // 2x EZ M.2 Clip II // EZ M.2 Clip II Remover // EZ Wi-Fi Antenna // 1 to 2 EZ Conn-Cable (V1) // Cable Sticker*
*Operating System*	*Support for Windows® 11 64-bit*
*Form Factor*	*ATX, 243.84x304.8mm*

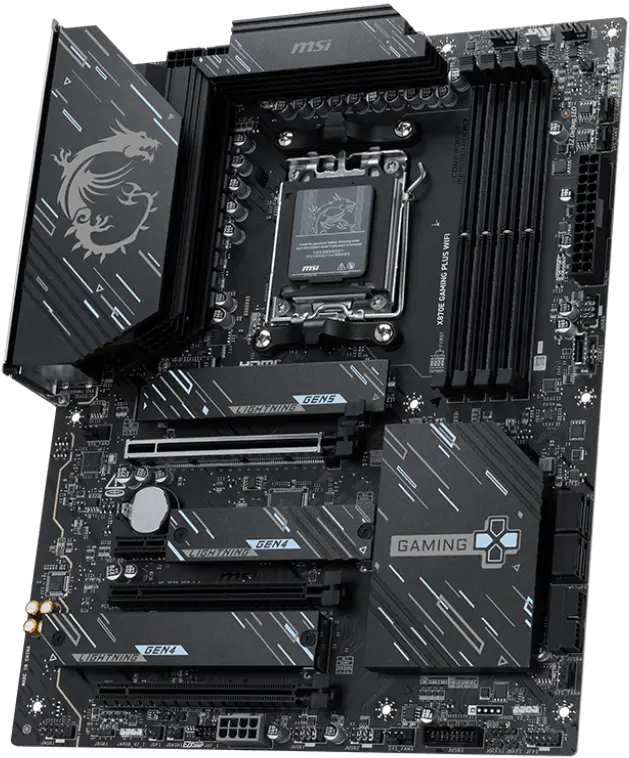

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
