Flagship 2TB Gen5 Bandwidth for Extreme Gaming & AI Workloads

The Samsung 9100 PRO 2TB PCIe 5.0 NVMe SSD represents the absolute pinnacle of consumer storage technology. Delivering groundbreaking transfer rates up to 14,700 MB/s read and 13,400 MB/s write, this 2TB drive is engineered specifically for enthusiasts, 8K video editors, and high-performance AI computing.

Key Features:

Next-Gen PCIe 5.0 x4 Interface: Powered by Samsung's proprietary 5nm Presto controller and 8th-Gen V-NAND TLC technology to deliver nearly twice the performance of previous-gen Gen4 SSDs.
Dedicated 2GB LPDDR4X Cache: Houses a dedicated 2GB Low-Power DDR4X DRAM cache to eliminate latency spikes during large file transfers and sustained heavy rendering.
2,600,000 IOPS Random Speed: Boasts random read/write speeds up to 1,850,000 / 2,600,000 IOPS for instantaneous game loading and parallel AI model processing.
49% Greater Energy Efficiency: Advanced 5nm controller architecture reduces thermal heat generation and increases power efficiency by up to 49% per watt compared to the 990 PRO.
1,200 TBW Extreme Endurance: Built for heavy sustained writes with a rating of 1,200 Total Bytes Written.

specs:

Model	9100 PRO NVMe™ M.2 SSD 2TB
Model Number	MZ-VAP2T0BW
From Factory	M.2 (2280)
Capacity	2TB
Interface	PCIe® 5.0 x4, NVMe™ 2.0
NAND Type	Samsung V-NAND TLC
Speed	Sequential Read: Up to 14.700MB/s // Sequential Write: Up to 13.400MB/s
Cache Memory	Samsung 2GB Low Power DDR4X SDRAM
Endurance (TBW)	1,200 TBW
Reliability (MTBF)	1.5 Million Hours Reliability (MTBF)
Controller	Samsung in-house Controller
Power	Average Power Consumption (system level): Read 8.1W / Write 7.9W // Power consumption (Idle): Typical 4.8mW // Power Consumption (Device Sleep): Typical 4mW // Allowable Voltage: 3.3 V ± 5 %
Special Feature	TRIM Support // S.M.A.R.T Support // Auto Garbage Collection Algorithm // AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) // Device Sleep Mode Support
Application	Client PCs, Game Consoles
Operating Temperatures	0°C to 70°C
Non-operating Temperatures	-40°C to 85°C
Resources	https://www.samsung.com/ae/memory-storage/nvme-ssd/9100-pro-2tb-nvme-pcie-gen-5-mz-vap2t0bw/
Dimensions (L x W x H)	Max 80.15 x Max 22.15 x Max 2.38mm
Weight	9.0g

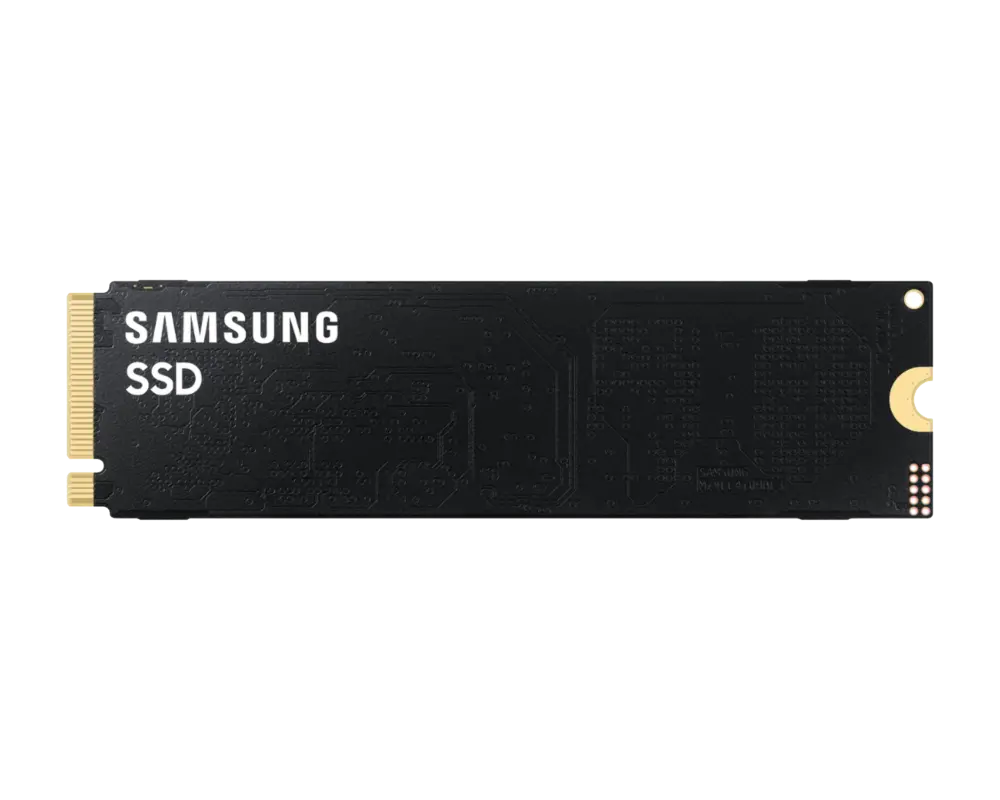

Samsung 9100 PRO 2TB PCIe 5.0 MZ-VAP2T0BW NVMe SSD

Product Description
