*Series*	*G12*
*Model*	*G12 GC-850W // 4711173878544*
*Efficiency*	*80Plus Gold*
*Total Output*	*850W*
*AC Input*	*100V - 240V // 10 - 6A // 50Hz - 60Hz*
*AC Input Range*	*Full Range*
*DC Output Voltage*	*Rail +3.3V, +5V, +12V, -12V, +5VSB*
*Maximum Load*	*20A, 20A, 70A, 0.3A, 2.5A*
*Combined Load*	*100W, 840W, 3.6W, 12.5W*
*Fan*	*120mm Fan*
*Fan Control*	*Smart and Silent Fan Control*
*Fan Bearings*	*Sleeve Bearing*
*Modularity*	*Fixed Cables*
*Cable type*	*Flat Black Cables*
*MTBF*	*100,000 hours*
*Protection Features*	*OPP, OVP, OCP, SCP, OTP, UVP*
*Safety and EMC*	*cTUVus, TUV, CB, CCC, BSMI, CE, FCC*
*Cable Connectors*	*MB (24/20 pins) 1 connector x1 Attached // CPU (8/4 pins) 1 connector x2 Attached // PCIe (8/6 pins) 1 connector x3 Attached // SATA 3 connectors x2 Attached // Molex 3 connectors x1 Attached*
*Features*	*S2FC - Smart And Silent Fan Control // ATX 12 V // Fixed Cables*
*Operating Temperature*	*0 - 50°C (derating from 100% to 80% from 40°C to 50°C linearly)*
*Form Factor*	*ATX/EPS*
*Dimensions(LxWxH)*	*140x150x86mm*

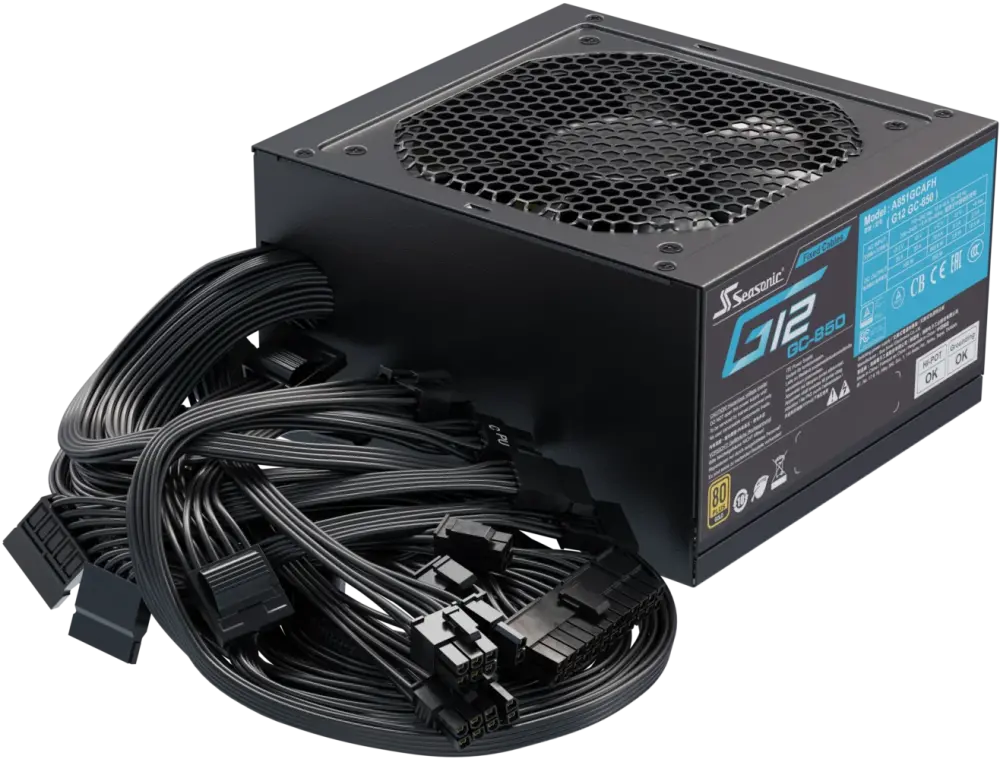

Seasonic G12 GC-850W 80+ Gold – ATX 12V, Smart and Silent 120mm Fan, Sleeve Bearing, Flat Black Cables

Product Description
