Product No	SST-AT750R-BF
Model	SST-AX0750FCBR-A
Color	Black
Max. DC Output	750W
Combined +3.3V & +5V	100W
Load Range	Output +3.3V +5V +12V +5VSB -12V Max.(Amps) 20A 20A 62.5A 3A 0.3A / Min.(Amps) 0A 0A 0A 0A 0A / Range (%) ±5% ±5% +5~-7% ±5% ±10% / Line Reg.(%) ±1% ±1% ±1% ±1% ±1% / Ripple(mVp-p) 50mV 50mV 120mV 50mV 50mV
Combined +12V	750W
Input Voltage	90 ~ 264 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF>0.9 at full load)
Efficiency	82% ~ 85% (at 20% ~ 100% loading)
MTBF	100,000 hours
Operating temperature	0°C ~ 50°C
Certification	80 PLUS Bronze
Protection	Over Power Protection / Over Voltage Protection / Short Circuit Protection / Under Voltage Protection
Connectors	1x 24 / 20-Pin motherboard connector / 2x 4-Pin + 4-Pin ATX 12V connector / 4x 8 / 6-Pin PCIe connector / 6x SATA connectors / 3x 4-Pin Peripheral connector
Form factor	ATX (PS2)
Dimension	150×86×140mm
Noise Level	18 dBA minimum
Weight	1.54 kg
Cooling System	Silent 120mm fan

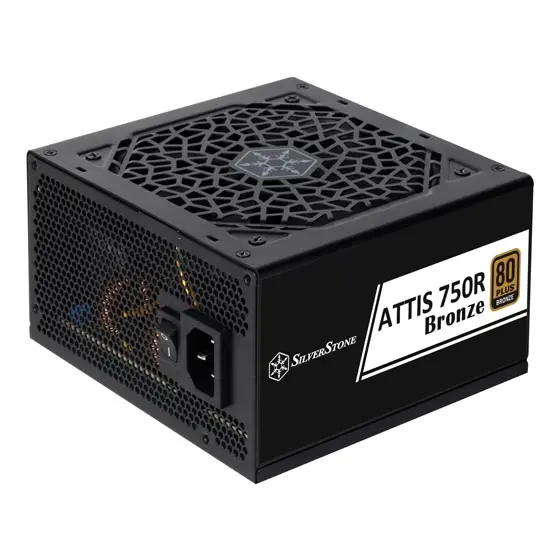

SilverStone ATTIS 750R 750W 80 PLUS Bronze SST-AT750R-BF Silent 120mm Fan ATX 3.1
