Brand	Silverstone
Model	Decathlon 1000 Gold
Product Number	SST-DA1000-GH
Max. DC Output	1000W
Power density	484W per liter
Combined +3.3V & +5V	100W
Combined +12V	999.66W
Input Voltage	90 ~ 264 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF>0.9 at full load)
Efficiency	≥87% & <89%
Load Range	Output: +3.3V +5V +12V +5VSB -12V // Max (Amps): 20A 20A 83.33A 3A 0.3A // Min(Amps) 0A 0A 0A 0A 0A // Range (%): ±5% ±5% ±5% ±5% ±10% // Line Reg(%): ±1% ±1% ±1% ±2.5% ±2.5% // Ripple(mVp-p): 50mV 50mV 70mV 50mV 80mV
MTBF	100,000 hours
Operating temperature	0°C ~ 40°C
Protection	Over Current Protection / Over Power Protection / Over Voltage Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No load operation
Connectors	1x 24 / 20-Pin motherboard connector / 1x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector / 8x 8 / 6-Pin PCIe connector / 12x SATA connector / 4x 4-Pin Peripheral connector
Cooling System	Silent 140mm FDB fan
Noise Level	18 dBA minimum
Certification	Cybenetics Gold
Form factor	ATX (PS2)
Weight	2.24kg
Dimension (wxHxD)	150×86x160mm

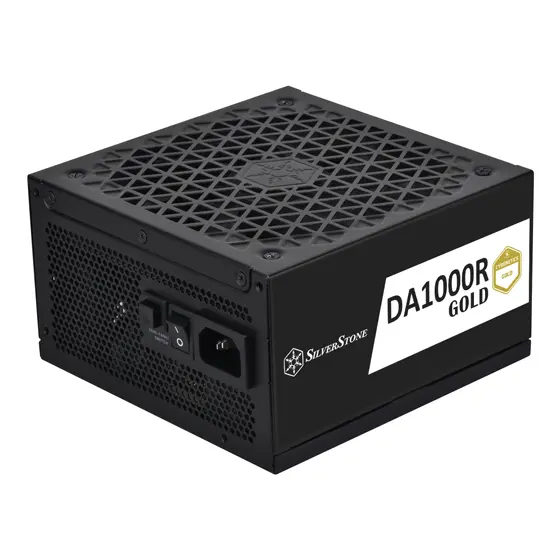

Silverstone DA1000 Gold Semi-Modular ATX – Silent 140mm FDB fan, Cybenetics Gold, Japanese capacitors
