Product No	SST-HA1300R-PM
Model (safety certification)	SST-AX1300MCPT-A
Color	Black
Power density	720W per liter
Max. DC Output	1300W
Load Range	Output +3.3V +5V +12V +5VSB -12V Max.(Amps) 24A 24A 108.3A 3.0A 0.5A / Min.(Amps) 0A 0A 0A 0A 0A / Range (%) ±5% ±5% +5/-7% ±5% ±5% / Line Reg.(%) ±1% ±1% ±1% ±1% ±1% / Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V	120W
Combined +12V	1300W
Input Voltage	90 ~ 264 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF>0.9 at full load)
Efficiency	≥89% & <91% overall efficiency
MTBF	100,000 hours
Operating temperature	0°C ~ 50°C
Cooling System	Silent 120mm FDB fan
Noise Level	0 dBA minimum
Certification	Cybenetics Platinum
Form factor	ATX (PS2)
Dimension	150mm (W) x 86mm (H) x 140mm (D)
Weight	2.93 kg
Protection	Over Current Protection / Over Power Protection / Over Voltage Protection / Over Temperature Protection / Short Circuit Protection / Under Voltage Protection / No load operation
Connectors	1x 24 / 20-Pin motherboard connector / 2x 4-Pin + 4-Pin ATX 12V connector / 1x 12+4-Pin 12VHPWR connector / 8x 8 / 6-Pin PCIe connectors / 8x SATA connectors / 6x 4-Pin Peripheral connectors / 2x 4-Pin Floppy connectors

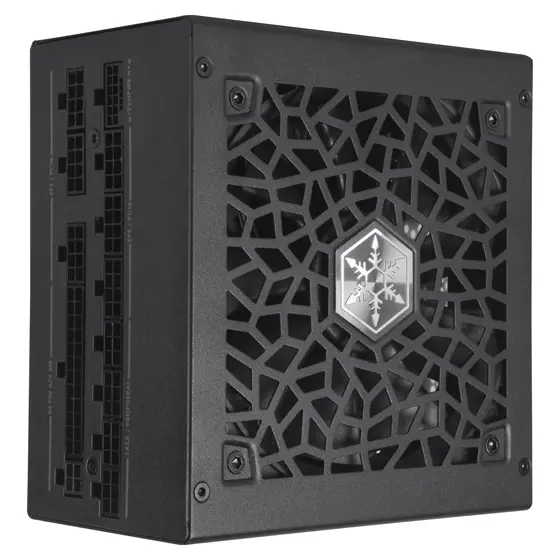

SilverStone HELA 1300R 1300W Platinum Cybenetics ATX 3.0 & PCIe 5.0 Fully Modular

Product Description
