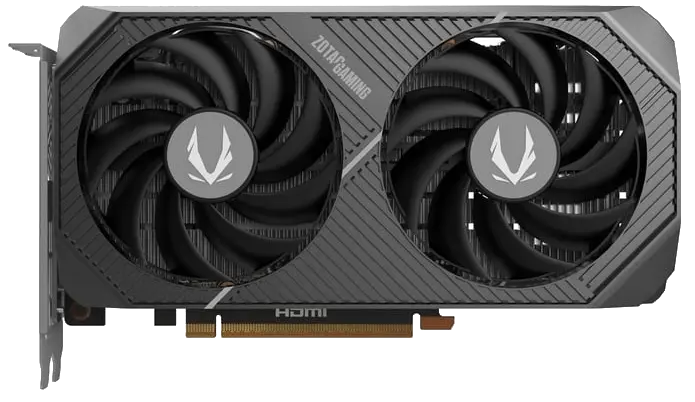

Compact Dual-Fan Gaming Graphics Card for High-FPS 1080p Performance:

The ZOTAC GAMING GeForce RTX 5050 Twin Edge 8GB GDDR6 (ZT-B50500E-10M) is designed to deliver smooth 1080p and entry-level 1440p gaming performance in a compact twin-fan form factor. Powered by NVIDIA’s latest architecture, 8GB of GDDR6 memory, and a 2572MHz Boost Clock, the RTX 5050 Twin Edge leverages DLSS 4 AI frame generation and real-time ray tracing. Featuring an advanced IceStorm dual-fan cooling system and a durable metal backplate, it fits easily into small form factor (SFF) and micro-ATX desktop PC builds.

Key features:

Next-Gen DLSS 4 AI Acceleration: Boosts framerates dramatically in modern AAA titles using AI-powered frame generation while maintaining crisp native-like image reconstruction.
Advanced Thermal Cooling: Features curved fan blades, composite copper heatpipes, and aluminum fin stacks for efficient thermal dissipation under heavy load.
Compact Dual-Slot Form Factor: Reduced card length ensures seamless compatibility with tight micro-ATX and Mini-ITX PC chassis.
PCIe 5.0 High-Speed Interface: Provides maximum data bandwidth between the GPU and motherboard for smooth high-framerate gameplay.
Multi-Display Productivity: Supports up to 4 simultaneous displays via triple DisplayPort 2.1b and HDMI 2.1a connections for multi-monitor gaming setups.

Specs:

Model	ZOTAC GAMING GeForce RTX 5050 Twin Edge
Product Number	ZT-B50500E-10M
Graphic Engine	GeForce RTX™ 5050
Bus Standard	PCI Express 5.0 x8
Engine Clock	2572MHz
CUDA Core	2560
Video Memory	8GB GDDR6
Memory Speed	2500MHz - 20Gbps effective
Memory Interface	128-bit
Memory Bandwidth	320.0GB/s
AI Performance	421 TOPs
Tensor Compute Performance	FP16 (half): 13.32 TFLOPS (1:1) // FP32 (float): 13.32 TFLOPS // FP64 (double): 208.2 GFLOPS (1:64)
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Resolution	Digital Max Resolution 7680x4320
Interface	3x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) // 1x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) // HDCP Support 2.3
Maximum Display Support	4
SLI	No
Cooling	Fans + Heatsink
Software	FireStorm Utility
Features	Powered by the NVIDIA Blackwell architecture and DLSS 4 - 8-Pin PCIe power connector - SFF-Ready compact Graphics Card - Metal Backplate - BladeLink Fans
Accessories	User Manual
PCB Form	ATX
Dimensions	L=220.5 W=120.25 H=41.6mm
Recommended PSU	550W
Power Connectors	1x 8-pin power input
Slot	2 Slot
Resources	https://www.zotac.com/product/graphics_card/zotac-gaming-geforce-rtx-5050-twin-edge#spec
