High-Performance 16GB Dual-Fan Graphics Card for 1440p QHD Gaming:

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge (ZT-B50620E-10M) is engineered for high-framerate 1440p gaming and graphics-intensive creator workflows. Powered by NVIDIA’s advanced architecture, 16GB of high-speed GDDR7 memory, and a 2572MHz Boost Clock, this dual-fan graphics card provides high VRAM headroom for modern texture-heavy AAA games and AI generation workloads. Equipped with NVIDIA DLSS 4 frame generation, PCIe 5.0 support, and an upgraded IceStorm 2.0 thermal system, it brings powerful gaming capabilities into compact PC cases.

Key Features:

Generous 16GB GDDR7 VRAM Buffer: Eliminates VRAM bottlenecks in modern 1440p titles and intensive ray-traced games, ensuring smooth frame rates and high-resolution texture streaming.
Next-Generation DLSS 4 AI Scaling: Multiplies game performance through neural rendering and AI-generated frames while maintaining visual sharpness.
IceStorm 2.0 Thermal System: Features customized composite heatpipes, wide aluminum fin stacks, and dual BladeLink fans for quiet heat dissipation.
Compact Twin-Edge Form Factor: Ultra-compact dual-slot footprint fits easily into smaller Micro-ATX and Mini-ITX PC enclosures without sacrificing thermal throughput.
FREEZE Fan Stop Technology: Automatically turns off cooling fans when the GPU is idling to ensure completely silent daily operation.

specs:

Model	ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge
Product Number	ZT-B50620E-10M
Graphic Engine	GeForce RTX™ 5060 Ti
Bus Standard	PCI Express 5.0 x8
Engine Clock	2572MHz
CUDA Core	4608
Video Memory	16GB GDDR7
Memory Speed	1750MHz - 28Gbps effective
Memory Interface	128-bit
Memory Bandwidth	448.0GB/s
AI Performance	759 TOPs
Tensor Compute Performance	FP16 (half): 23.98 TFLOPS (1:1) // FP32 (float): 23.98TFLOPS // FP64 (double): 374.7 GFLOPS (1:64)
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Resolution	Digital Max Resolution 7680x4320
Interface	3x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) // 1x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) // HDCP Support 2.3
Maximum Display Support	4
SLI	No
Cooling	IceStorm 2.0
Software	FireStorm Utility
Features	Powered by the NVIDIA Blackwell architecture and DLSS 4 - 8-Pin PCIe power connector - SFF-Ready Graphics Card - Compact dual-fan form factor - IceStorm 2.0 Cooling - BladeLink Fans - FREEZE Fan Stop - Metal Backplate
Accessories	User Manual
PCB Form	ATX
Dimensions	L=220.5 W=120.25 H=41.6mm
Recommended PSU	600W
Power Connectors	1x 8-pin power input
Slot	2 Slot
Resources	https://www.zotac.com/product/graphics_card/zotac-gaming-geforce-rtx-5060-ti-16gb-twin-edge

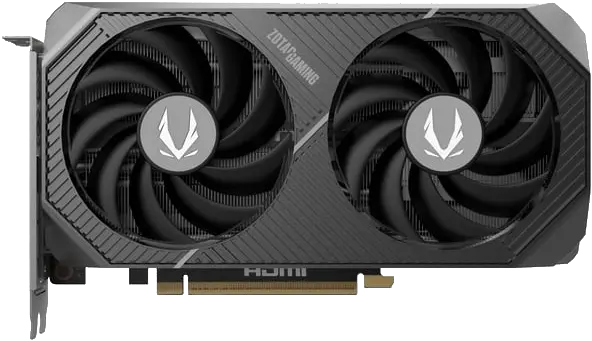

ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge Graphics Card
